FTN-20

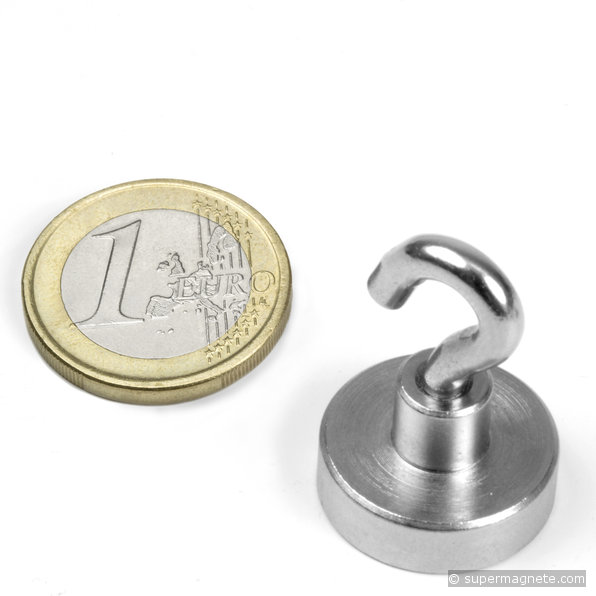

Hook magnet Ø 20 mm

Thread M4, strength approx. 13 kg

Available: 29 457 pcs.

Article ID FTN-20
EAN 7640155432382
Material NdFeB
Pot diameter D 20 mm
Neck diameter d 8 mm
Pot height H1 6 mm
Total height without hook H2 13 mm
Total height with hook H3 29 mm
Thread M M4
Hook opening width a 4 mm
Hook inside diameter b 5.5 mm
Tolerance +/- 0,1 mm
Coating Nickel-plated (Ni-Cu-Ni)
Steel Q235 (China)
Magnetisation N38
Strength approx. 13 kg (approx. 127 N)
Max. working temperature 80°C
Tolerance hook +/- 0,5 mm
Weight 20 g
PDF data sheet
  1 pc.   3,59 EUR ea.
from   3 pcs.   3,13 EUR ea.
from   10 pcs.   2,72 EUR ea.
from   20 pcs.   2,52 EUR ea.
from   40 pcs.   2,34 EUR ea.
from   240 pcs.   according to quote

incl. 25% VAT plus shipping
Delivery time Denmark: 2 - 8 business days
